Inserting XML Elements in Excel

This topic provides detailed information on how to insert XML elements in your Excel document,.

Elements inserted into your worksheet require two table cells:

• the upper cell contains the caption, which is the element name by default
• the lower cell is reserved for the value, which Proliance fills in when you print a document using the layout

To insert XML elements

1. Select the cell(s) into which you are inserting an element.

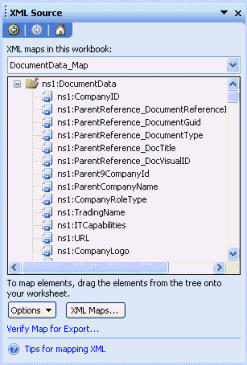

2. Decide which field to display when this layout is used to print a report and then locate the name of its corresponding XML Element in the XML Source task pane. You may need to expand the XML Map to see the structure of the XML if you want to insert an element from an item list.
3. Double-click on the element in the task pane to insert it into the worksheet at the selected location.

Show

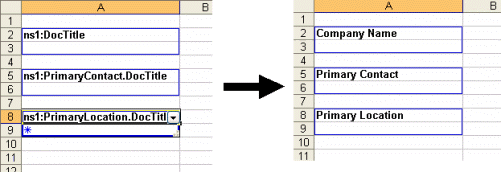

4. Optionally rename the captions in the worksheet. This will not affect the XML mapping.

Show



5. Format the cells as appropriate (font style, size, shading, etc.).
6. Optionally, add any extra text to the worksheet that you want included when this layout is used to print a report.
